Ref. : LA7979

LA7979
LA7979

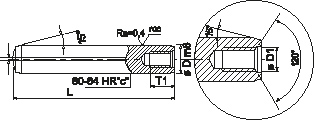

Interchangeable with: Z26, E1302, 521, PASR, SN1975, KWG. ISO 8735 DIN 7979 Sheet metal 0.05 to 0.10.
NomCode LugandPrice
DOWEL PIN WITH TAP.LA7979 M6 D10X016 M640116101,84
DOWEL PIN WITH TAP.LA7979 M6 D10X020 M640116110,68
DOWEL PIN WITH TAP.LA7979 M6 D10X024 M640116120,76
DOWEL PIN WITH TAP.LA7979 M6 D10X025 M640116130,83
DOWEL PIN WITH TAP.LA7979 M6 D10X028 M640116140,86
DOWEL PIN WITH TAP.LA7979 M6 D10X030 M640116150,86
DOWEL PIN WITH TAP.LA7979 M6 D10X032 M640116160,86
DOWEL PIN WITH TAP.LA7979 M6 D10X035 M640116170,94
DOWEL PIN WITH TAP.LA7979 M6 D10X036 M640116180,91
DOWEL PIN WITH TAP.LA7979 M6 D10X040 M640116200,94
DOWEL PIN WITH TAP.LA7979 M6 D10X045 M640116210,99
DOWEL PIN WITH TAP.LA7979 M6 D10X050 M640116220,99
DOWEL PIN WITH TAP.LA7979 M6 D10X055 M640116231,01
DOWEL PIN WITH TAP.LA7979 M6 D10X060 M640116241,01
DOWEL PIN WITH TAP.LA7979 M6 D10X070 M640116251,09
DOWEL PIN WITH TAP.LA7979 M6 D10X080 M640116261,11
DOWEL PIN WITH TAP.LA7979 M6 D10X090 M640116271,11
DOWEL PIN WITH TAP.LA7979 M6 D10X100 M640116281,19
DOWEL PIN WITH TAP.LA7979 M6 D10X110 M640116291,23
DOWEL PIN WITH TAP.LA7979 M6 D10X120 M640116301,29
DOWEL PIN WITH TAP.LA7979 M6 D10X130 M640116311,35
DOWEL PIN WITH TAP.LA7979 M6 D10X140 M640116321,50
DOWEL PIN WITH TAP.LA7979 M6 D12X020 M640116420,83
DOWEL PIN WITH TAP.LA7979 M6 D12X024 M640116430,97
DOWEL PIN WITH TAP.LA7979 M6 D12X025 M640116440,86
DOWEL PIN WITH TAP.LA7979 M6 D12X028 M640116450,94
DOWEL PIN WITH TAP.LA7979 M6 D12X030 M640116460,94
DOWEL PIN WITH TAP.LA7979 M6 D12X032 M640116470,99
DOWEL PIN WITH TAP.LA7979 M6 D12X035 M640116481,01
DOWEL PIN WITH TAP.LA7979 M6 D12X036 M640116491,17
DOWEL PIN WITH TAP.LA7979 M6 D12X040 M640116501,01
DOWEL PIN WITH TAP.LA7979 M6 D12X045 M640116511,09
DOWEL PIN WITH TAP.LA7979 M6 D12X050 M640116521,11
DOWEL PIN WITH TAP.LA7979 M6 D12X055 M640116531,21
DOWEL PIN WITH TAP.LA7979 M6 D12X060 M640116541,23
DOWEL PIN WITH TAP.LA7979 M6 D12X070 M640116551,35
DOWEL PIN WITH TAP.LA7979 M6 D12X080 M640116561,50
DOWEL PIN WITH TAP.LA7979 M6 D12X090 M640116571,62
DOWEL PIN WITH TAP.LA7979 M6 D12X100 M640116581,72
DOWEL PIN WITH TAP.LA7979 M6 D12X110 M640116593,15
DOWEL PIN WITH TAP.LA7979 M6 D12X120 M640116601,82
DOWEL PIN WITH TAP.LA7979 M6 D12X130 M640116611,86
DOWEL PIN WITH TAP.LA7979 M6 D12X140 M640116621,94
DOWEL PIN WITH TAP.LA7979 M6 D12X150 M640116637,73
DOWEL PIN WITH TAP.LA7979 M6 D12X160 M640116649,42
DOWEL PIN WITH TAP.LA7979 M6 D14X028 M840116742,28
DOWEL PIN WITH TAP.LA7979 M6 D14X030 M840116751,01
DOWEL PIN WITH TAP.LA7979 M6 D14X032 M840116761,02
DOWEL PIN WITH TAP.LA7979 M6 D14X035 M840116771,09
DOWEL PIN WITH TAP.LA7979 M6 D14X036 M840116782,32
DOWEL PIN WITH TAP.LA7979 M6 D14X040 M840116791,11
DOWEL PIN WITH TAP.LA7979 M6 D14X045 M840116801,15
DOWEL PIN WITH TAP.LA7979 M6 D14X050 M840116811,90
DOWEL PIN WITH TAP.LA7979 M6 D14X055 M840116821,23
DOWEL PIN WITH TAP.LA7979 M6 D14X060 M840116831,33
DOWEL PIN WITH TAP.LA7979 M6 D14X070 M840116841,39
DOWEL PIN WITH TAP.LA7979 M6 D14X080 M840116851,52
DOWEL PIN WITH TAP.LA7979 M6 D14X090 M840116861,66
DOWEL PIN WITH TAP.LA7979 M6 D14X100 M840116871,78
DOWEL PIN WITH TAP.LA7979 M6 D14X110 M840116881,83
DOWEL PIN WITH TAP.LA7979 M6 D14X120 M840116891,86
DOWEL PIN WITH TAP.LA7979 M6 D14X130 M840116901,94
DOWEL PIN WITH TAP.LA7979 M6 D14X140 M840116912,05
DOWEL PIN WITH TAP.LA7979 M6 D14X150 M840116922,14
DOWEL PIN WITH TAP.LA7979 M6 D14X160 M840116932,33
DOWEL PIN WITH TAP.LA7979 M6 D16X028 M840117032,50
DOWEL PIN WITH TAP.LA7979 M6 D16X030 M840117042,90
DOWEL PIN WITH TAP.LA7979 M6 D16X032 M840117052,56
DOWEL PIN WITH TAP.LA7979 M6 D16X036 M840117062,63
DOWEL PIN WITH TAP.LA7979 M6 D16X040 M840117071,33
DOWEL PIN WITH TAP.LA7979 M6 D16X045 M840117081,35
DOWEL PIN WITH TAP.LA7979 M6 D16X050 M840117091,45
DOWEL PIN WITH TAP.LA7979 M6 D16X055 M840117101,55
DOWEL PIN WITH TAP.LA7979 M6 D16X060 M840117111,66
DOWEL PIN WITH TAP.LA7979 M6 D16X070 M840117122,00
DOWEL PIN WITH TAP.LA7979 M6 D16X080 M840117131,78
DOWEL PIN WITH TAP.LA7979 M6 D16X090 M840117141,83
DOWEL PIN WITH TAP.LA7979 M6 D16X100 M840117151,94
DOWEL PIN WITH TAP.LA7979 M6 D16X110 M840117162,05
DOWEL PIN WITH TAP.LA7979 M6 D16X120 M840117172,13
DOWEL PIN WITH TAP.LA7979 M6 D16X130 M840117182,29
DOWEL PIN WITH TAP.LA7979 M6 D16X140 M840117192,63
DOWEL PIN WITH TAP.LA7979 M6 D18X040 M1040117311,50
DOWEL PIN WITH TAP.LA7979 M6 D18X045 M1040117321,55
DOWEL PIN WITH TAP.LA7979 M6 D18X050 M1040117331,68
DOWEL PIN WITH TAP.LA7979 M6 D18X055 M1040117341,78
DOWEL PIN WITH TAP.LA7979 M6 D18X060 M140117351,96
DOWEL PIN WITH TAP.LA7979 M6 D18X070 M140117362,08
DOWEL PIN WITH TAP.LA7979 M6 D18X080 M1040117372,09
DOWEL PIN WITH TAP.LA7979 M6 D18X090 M1040117382,33
DOWEL PIN WITH TAP.LA7979 M6 D18X100 M1040117392,50
DOWEL PIN WITH TAP.LA7979 M6 D18X120 M1040117402,85
DOWEL PIN WITH TAP.LA7979 M6 D18X130 M1040117413,45
DOWEL PIN WITH TAP.LA7979 M6 D18X140 M1040117423,59
DOWEL PIN WITH TAP.LA7979 M6 D20X032 M1040117523,76
DOWEL PIN WITH TAP.LA7979 M6 D20X036 M1040117533,94
DOWEL PIN WITH TAP.LA7979 M6 D20X040 M1040117541,64
DOWEL PIN WITH TAP.LA7979 M6 D20X045 M1040117551,64
DOWEL PIN WITH TAP.LA7979 M6 D20X050 M1040117561,78
DOWEL PIN WITH TAP.LA7979 M6 D20X055 M1040117571,83
DOWEL PIN WITH TAP.LA7979 M6 D20X060 M1040117582,06
DOWEL PIN WITH TAP.LA7979 M6 D20X070 M1040117592,20
DOWEL PIN WITH TAP.LA7979 M6 D20X080 M1040117602,33
DOWEL PIN WITH TAP.LA7979 M6 D20X090 M1040117612,38
DOWEL PIN WITH TAP.LA7979 M6 D20X100 M1040117623,27
DOWEL PIN WITH TAP.LA7979 M6 D20X110 M1040117633,40
DOWEL PIN WITH TAP.LA7979 M6 D20X120 M1040117643,40
DOWEL PIN WITH TAP.LA7979 M6 D20X130 M10401176511,96
DOWEL PIN WITH TAP.LA7979 M6 D20X140 M10401176612,50
DOWEL PIN WITH TAP.LA7979 M6 D20X160 M10401176717,13
DOWEL PIN WITH TAP.LA7979 M6 D25X040 M16401186713,86
DOWEL PIN WITH TAP.LA7979 M6 D25X045 M16401186814,32
DOWEL PIN WITH TAP.LA7979 M6 D25X050 M16401186914,77
DOWEL PIN WITH TAP.LA7979 M6 D25X055 M16401187015,13
DOWEL PIN WITH TAP.LA7979 M6 D25X060 M16401187115,22
DOWEL PIN WITH TAP.LA7979 M6 D25X070 M16401187215,68
DOWEL PIN WITH TAP.LA7979 M6 D25X080 M16401187317,22
DOWEL PIN WITH TAP.LA7979 M6 D25X090 M16401187418,94
DOWEL PIN WITH TAP.LA7979 M6 D25X100 M16401187519,93
DOWEL PIN WITH TAP.LA7979 M6 D25X120 M16401187621,29
DOWEL PIN WITH TAP.LA7979 M6 D25X140 M16401187724,47
DOWEL PIN WITH TAP.LA7979 M6 D25X160 M16401187830,81
DOWEL PIN WITH TAP.LA7979 M6 D30X050 M20401188826,37
DOWEL PIN WITH TAP.LA7979 M6 D30X055 M20401188927,46
DOWEL PIN WITH TAP.LA7979 M6 D30X060 M20401189028,91
DOWEL PIN WITH TAP.LA7979 M6 D30X070 M20401189129,72
DOWEL PIN WITH TAP.LA7979 M6 D30X080 M20401189231,35
DOWEL PIN WITH TAP.LA7979 M6 D30X090 M20401189333,16
DOWEL PIN WITH TAP.LA7979 M6 D30X100 M20401189435,52
DOWEL PIN WITH TAP.LA7979 M6 D30X120 M20401189540,32
DOWEL PIN WITH TAP.LA7979 M6 D30X140 M20401189644,40
DOWEL PIN WITH TAP.LA7979 M6 D4 X010 M340115071,67
DOWEL PIN WITH TAP.LA7979 M6 D4 X012 M340115081,67
DOWEL PIN WITH TAP.LA7979 M6 D4 X014 M340115091,74
DOWEL PIN WITH TAP.LA7979 M6 D4 X016 M340115101,79
DOWEL PIN WITH TAP.LA7979 M6 D4 X018 M340115111,84
DOWEL PIN WITH TAP.LA7979 M6 D4 X020 M340115121,89
DOWEL PIN WITH TAP.LA7979 M6 D4 X024 M340115131,99
DOWEL PIN WITH TAP.LA7979 M6 D4 X028 M340115142,24
DOWEL PIN WITH TAP.LA7979 M6 D4 X030 M340115152,39
DOWEL PIN WITH TAP.LA7979 M6 D4 X036 M340115162,69
DOWEL PIN WITH TAP.LA7979 M6 D4 X040 M340115172,74
DOWEL PIN WITH TAP.LA7979 M6 D5 X010 M340115271,07
DOWEL PIN WITH TAP.LA7979 M6 D5 X012 M340115281,28
DOWEL PIN WITH TAP.LA7979 M6 D5 X014 M340115261,28
DOWEL PIN WITH TAP.LA7979 M6 D5 X016 M340115290,66
DOWEL PIN WITH TAP.LA7979 M6 D5 X018 M340115300,71
DOWEL PIN WITH TAP.LA7979 M6 D5 X020 M340115310,71
DOWEL PIN WITH TAP.LA7979 M6 D5 X024 M340115320,75
DOWEL PIN WITH TAP.LA7979 M6 D5 X028 M340115330,81
DOWEL PIN WITH TAP.LA7979 M6 D5 X030 M340115340,85
DOWEL PIN WITH TAP.LA7979 M6 D5 X032 M340115350,90
DOWEL PIN WITH TAP.LA7979 M6 D5 X036 M340115360,97
DOWEL PIN WITH TAP.LA7979 M6 D5 X040 M340115371,09
DOWEL PIN WITH TAP.LA7979 M6 D5 X045 M340115381,19
DOWEL PIN WITH TAP.LA7979 M6 D5 X050 M340115391,33
DOWEL PIN WITH TAP.LA7979 M6 D5 X060 M340115402,19
DOWEL PIN WITH TAP.LA7979 M6 D6 X010 M440115481,45
DOWEL PIN WITH TAP.LA7979 M6 D6 X012 M440115490,80
DOWEL PIN WITH TAP.LA7979 M6 D6 X014 M4440115500,99
DOWEL PIN WITH TAP.LA7979 M6 D6 X016 M440115510,53
DOWEL PIN WITH TAP.LA7979 M6 D6 X018 M440115520,45
DOWEL PIN WITH TAP.LA7979 M6 D6 X020 M440115530,45
DOWEL PIN WITH TAP.LA7979 M6 D6 X022 M440115540,53
DOWEL PIN WITH TAP.LA7979 M6 D6 X024 M440115550,49
DOWEL PIN WITH TAP.LA7979 M6 D6 X026 M440115560,69
DOWEL PIN WITH TAP.LA7979 M6 D6 X028 M440115570,52
DOWEL PIN WITH TAP.LA7979 M6 D6 X030 M440115580,53
DOWEL PIN WITH TAP.LA7979 M6 D6 X032 M440115590,55
DOWEL PIN WITH TAP.LA7979 M6 D6 X035 M440115600,72
DOWEL PIN WITH TAP.LA7979 M6 D6 X036 M440115610,59
DOWEL PIN WITH TAP.LA7979 M6 D6 X040 M440115620,63
DOWEL PIN WITH TAP.LA7979 M6 D6 X045 M440115630,73
DOWEL PIN WITH TAP.LA7979 M6 D6 X050 M440115640,73
DOWEL PIN WITH TAP.LA7979 M6 D6 X055 M440115650,73
DOWEL PIN WITH TAP.LA7979 M6 D6 X060 M440115660,73
DOWEL PIN WITH TAP.LA7979 M6 D6 X070 M440115670,79
DOWEL PIN WITH TAP.LA7979 M6 D6 X080 M440115680,81
DOWEL PIN WITH TAP.LA7979 M6 D6 X090 M440115690,86
DOWEL PIN WITH TAP.LA7979 M6 D6 X100 M440115700,95
DOWEL PIN WITH TAP.LA7979 M6 D8 X012 M540115791,72
DOWEL PIN WITH TAP.LA7979 M6 D8 X016 M540115800,92
DOWEL PIN WITH TAP.LA7979 M6 D8 X020 M540115810,57
DOWEL PIN WITH TAP.LA7979 M6 D8 X022 M540115820,76
DOWEL PIN WITH TAP.LA7979 M6 D8 X024 M540115830,61
DOWEL PIN WITH TAP.LA7979 M6 D8 X025 M540115840,76
DOWEL PIN WITH TAP.LA7979 M6 D8 X028 M540115850,62
DOWEL PIN WITH TAP.LA7979 M6 D8 X030 M540115860,64
DOWEL PIN WITH TAP.LA7979 M6 D8 X032 M540115870,65
DOWEL PIN WITH TAP.LA7979 M6 D8 X035 M540115880,81
DOWEL PIN WITH TAP.LA7979 M6 D8 X036 M540115890,70
DOWEL PIN WITH TAP.LA7979 M6 D8 X040 M540115910,81
DOWEL PIN WITH TAP.LA7979 M6 D8 X045 M540115920,83
DOWEL PIN WITH TAP.LA7979 M6 D8 X050 M540115930,83
DOWEL PIN WITH TAP.LA7979 M6 D8 X055 M540115940,86
DOWEL PIN WITH TAP.LA7979 M6 D8 X060 M540115950,94
DOWEL PIN WITH TAP.LA7979 M6 D8 X070 M540115960,95
DOWEL PIN WITH TAP.LA7979 M6 D8 X080 M540115971,01
DOWEL PIN WITH TAP.LA7979 M6 D8 X090 M540115981,02
DOWEL PIN WITH TAP.LA7979 M6 D8 X100 M540115991,09
DOWEL PIN WITH TAP.LA7979 M6 D8 X120 M540116001,14
